ERA Laird Saracen Espag Shootbolt Gearbox Window Lock Duraflex UPVC Deadlock (Gearbox Only)

The gearbox works with bi-directional Twist Fit Rods to secure the window to the outer frame by locating into profile related keeps.

The Saracen Twist Fit Rods for this Gearbox Lock are also available in our shop.

Features:

• Available in left or right hand
• Tested in excess of 30,000 cycles
• Corrosion resistance meets the requirements of BS EN 1670:1998
• Gearbox: High strength Alloy
• Gearbox only - bars are available separately

1 x Left Hand or Right Hand Saracen Shootbolt Gearbox Lock for Duraflex Profiles

Dimensions:

• Black Plate Length: 90mm
• Black Plate Depth: 42mm
• Gearbox Length: 61mm
• Gearbox Depth: 12.2mm
• Distance between screw hole centres: 43mm

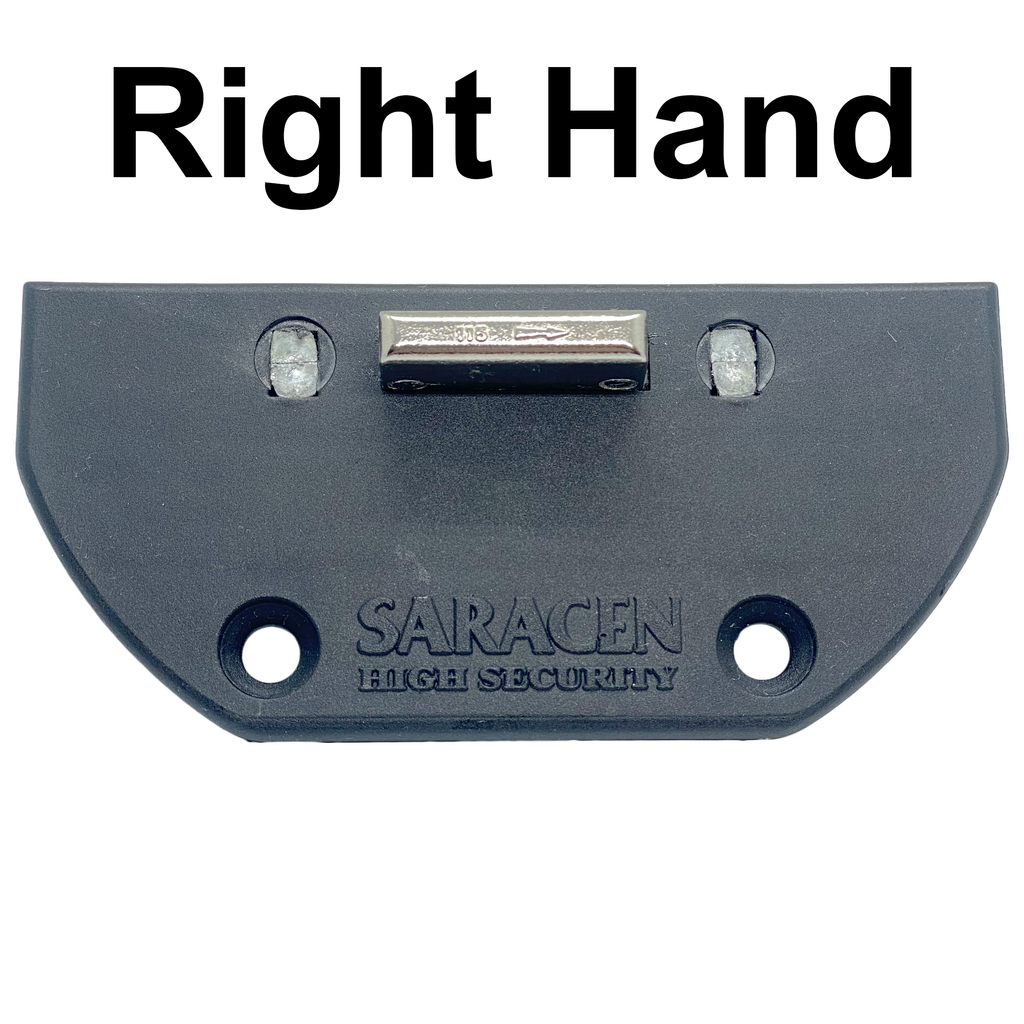

The Saracen gearbox is easily identified by a coloured dot on the underside of the black plate. If the dot is blue you need a left hand gearbox; if the dot is red you will need a right hand gearbox. If you are unfortunate enough to have no colour coding on your old gearbox then you need to look at your window handle from the inside - if it points to the left, you need a left hand gearbox, conversely if it points to the right then a right hand gearbox is required.
